Transradio 11 - 16 and 21 - 26
Manufactured by AEG - Telefunken.
The long distance receiving system Transradio was sold in many different configurations.
It was essentially based on the shortwave receivers E724 SW/2 or the very similar E863 Kw/2, which was additionally equipped with an option for locked operation with a 100 Hz channel spacing with fine tuning between the 100 Hz points.
Technical data
- Frequency range: 1.5 - 30.1 MHz
- frequency memory: none
Power supply
- Mains operation: 110, 220 V
- Batteries: 21.5 - 30 V
Accessories
- TG 455 Telegraphy set, FSK- Radio teletype - demodulator
- SG 455 display unit for mark and space signals
- AD 455 antenna diversity unit
Configurations
The components of the systems Transradio 11 - 16 (with receiver E724) and 21 - 26 with receiver E863 are as follows:
| Transradio | 11 | 12 | 14 | 15 | 16 | 21 | 22 | 24 | 25 | 26 |
|---|---|---|---|---|---|---|---|---|---|---|
| SW receiver E724 | X | X | X | X | X | |||||
| SW receiver E863 | X | X | X | X | X | |||||
| Telegraphy module TG 455 | X | X | X | X | X | X | ||||
| Additional module TG 455 TW | X | X | ||||||||
| Bandpassgerät BP 455 | X | X | ||||||||
| Single sideband unit SB 1091 | X | X | X | X | X | X | ||||
| Single sidband auxiliary unit SZ 1091 | X | X | X | X | X | X | ||||
| Panoramic diplay SG 455 | X | X | X | X | X | X | X | X | X | X |
| Antennen diversity unit AD 455 | X | X | X | X | X | X | ||||
| Single sideband addition SB 1091/5 | X | X | ||||||||
| Single sideband addition SZ 1091/5 | X | X | ||||||||
| Channel selector KS 1091 | X | X |

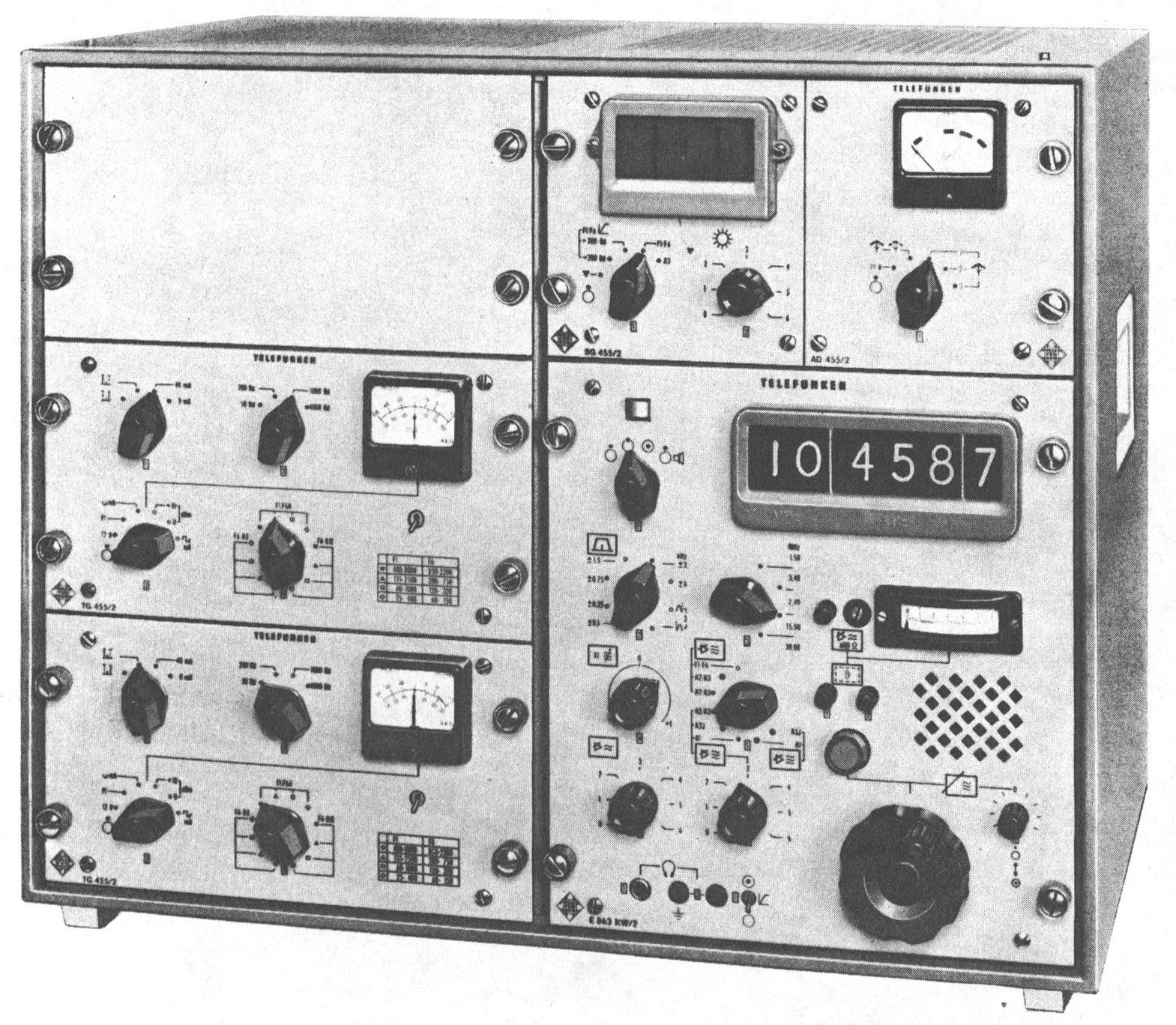

Transradio 11 and 21: Single or diversity reception in FSK Operation modes F1, F4, F6; single reception A1, A3, A3J, A4
Transradio 12 and 22: Single or diversity reception in FSK Operation modes F1, F4, F6; single reception A1, A3, A3J, A4; in addition, thanks to the TG 455 TW accessory, the second channel of F6 transmissions can be decoded.

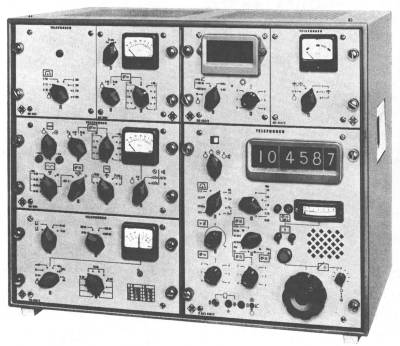

Transradio 14 and 24: Single or diversity reception in FSK operation modes F1, F4, F6; single reception A1, A3, A3J, A4; in addition, combined telephony/telegraphy transmissions with SSB telephony signal in the lower sideband and F1 telegraphy in the upper sideband can be made.

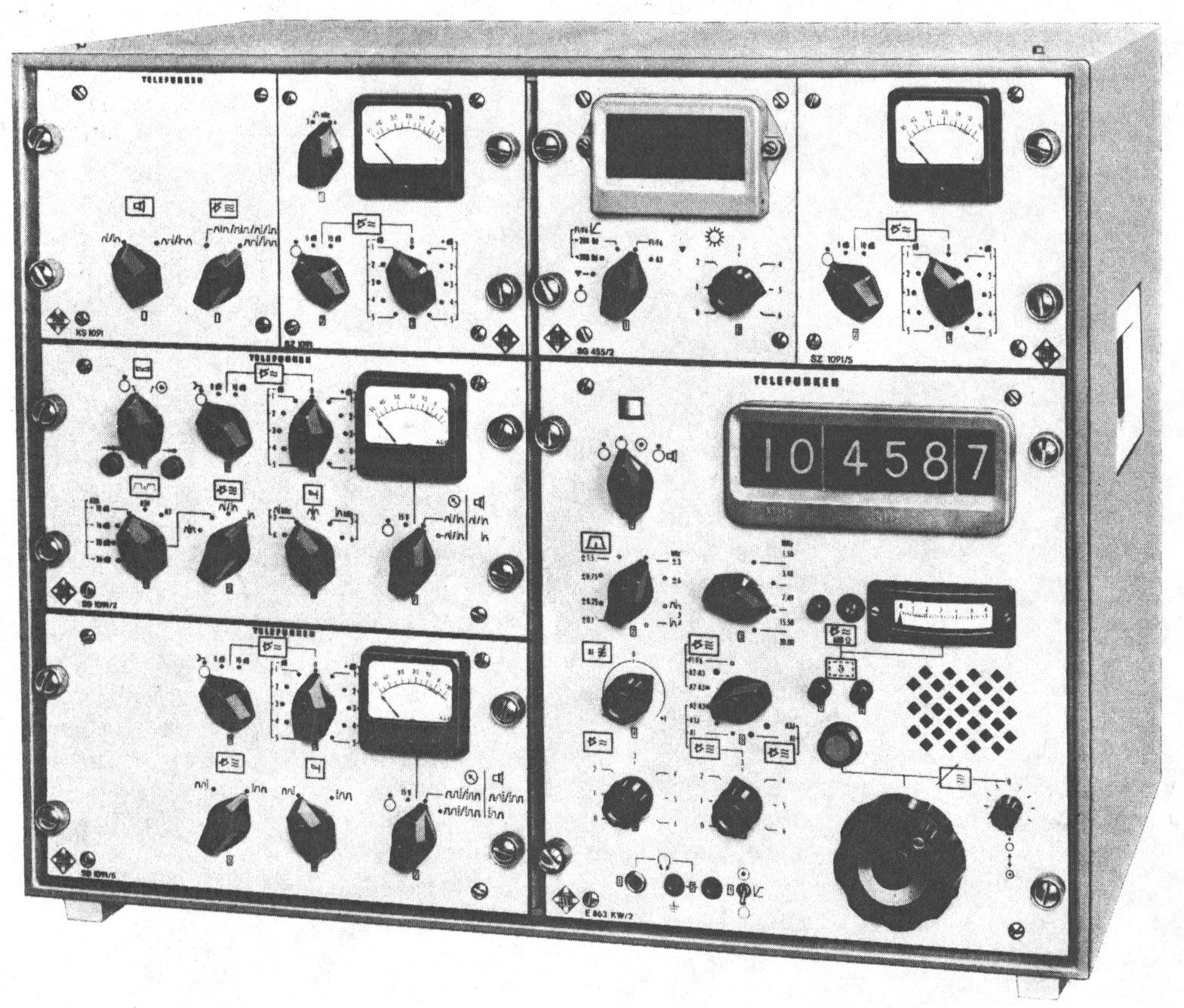

Transradio 15 and 25: Single and multi-channel - single sideband telephony or telegraphy, A3A, A3B, A3H, A4A, A7A, A9B, F1, F4, F6, plus A1, A2, A3, A3J.
Transradio 16 and 26: Single and multi-channel - single sideband telephony or telegraphy, A3A, A3B, A3H, A4A, A7A, A9B, F1, F4, F6, plus A1, A2, A3, A3J; for four-channel - single sideband transmissions, the received signal is demodulated and split into four AF channels.
Based on the information in a brochure on Telefunken transradios, it is possible to identify the different configurations. According to the note in the brochure, other individual configurations were also available.
